NX CAM

Duration: 1 Month | Eligibility: Basic Engineering Skill

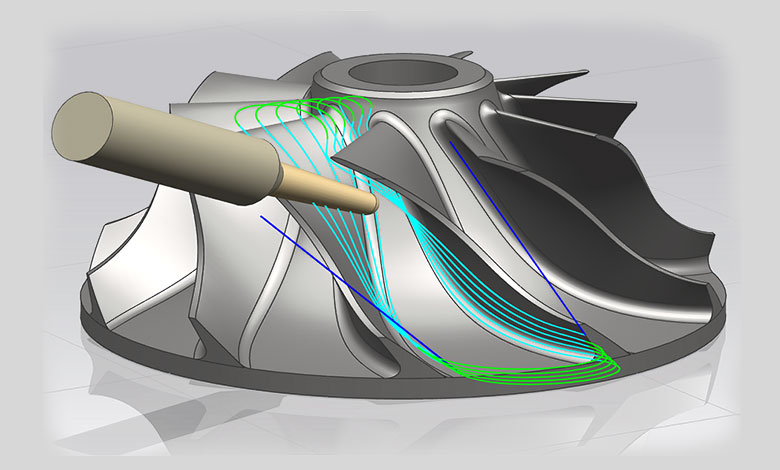

NX renders complete computer-aided manufacturing (CAM) software solutions at the place of machine tool programming, processing, and machine simulation. The software’s advanced function has the capacity to maximize the returns on investment in the latest machine tool technology.

• Software :
• NX CAM

• Course Structure :
• NX CAM Concepts
• Mill Planar - 2 D Milling
  • Floor & Wall
  • Face Mill With Boundary
  • Planar Profile,  Cleanup Corner
  • Finish Wall & Finish Floor
  • Hole Making / Drilling
• MILL CONTOUR - 3D MILLING PROFILE MILLING
  • Cavity Mil / Roughing Cycle
  • Plunge Milling , Corner Rough
  • Rest Milling / Semi Finish Cycle
  • Z Level Profile
  • Fixed Contour / Profile Finish
  • Contour Area
  • Flowcut Single –Multiple
  • Hole Making / Drilling
• Simulation / Show Remaining Material
• Post Process
• How To Set Machine Coordinate System
• Define Workpiece
• Stock & Clamp Setting
• Raw Material Define
• Tool Selection, Creation, Type
• Project

• Technical’s :
• CAM Fundamentals
• Government Certification
